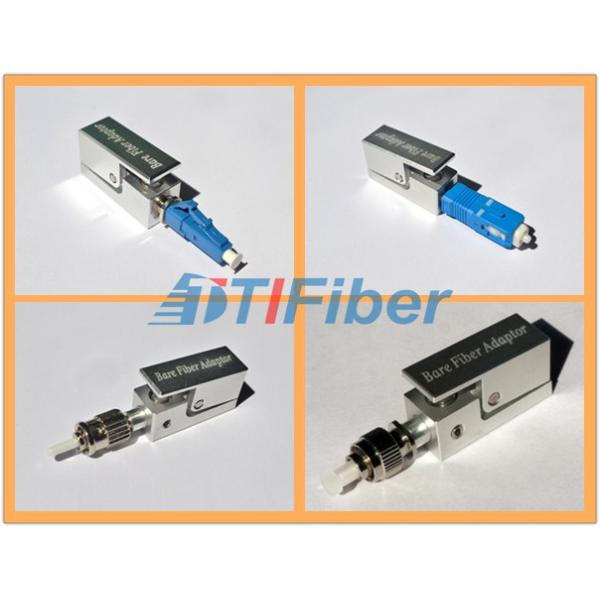

Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing

Product Categories

TTI Fiber Communication Tech. Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve Metal Housing
Brand: TTI Fiber
Price: 1 USD

Brand Name : TTI Fiber

Model Number : FOA-SC-OM3

Certification : ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates

Place of Origin : China

MOQ : 1000

Payment Terms : T/T, , PayPal, Monthly

Supply Ability : 10000pcs/day

Delivery Time : 2-3 days

Packaging Details : 25pcs/Case

Price : Negotiable

Name : Bare-LC fiber adapter

Type : Simplex

Sleeve : Cerimic, Bronze

Housing : Plastic, Metal

Insertion Loss : <=0.2dB

Return Loss : >=50dB(SM), >=35dB(MM)

Contact Now

Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing

Description:

Bare Fiber Optic Adapter is a most affordable and easy method for temporarily connecting bare fiber with all industry standard connectors. Bare fiber adapter are used as the medium to link the bare optical fiber to fiber optic equipment.
It’s a very convenient way to connect unterminated fibers with standard FC, SC, ST, LC receptacles.
You can simply strip, cleave, clean and insert the fiber, without the hassle of epoxy and epoxy curing steps.
There are various types available: SC, FC, ST, SMA, LC, and so on. Both single mode and multimode types are available.

Features:

Technical:

Applications:

Specification:

Parameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU				MTRJ
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	>1000				>1000			>1000
Operating Temperature	°C	-40~75				-40~75			-40~75
Storage Temperature	°C	-45~85				-45~85			-45~85
Plug and Unplug force (g/f)		200—600
Spec		Simplex and Duplex

Adapter order information:

Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing
